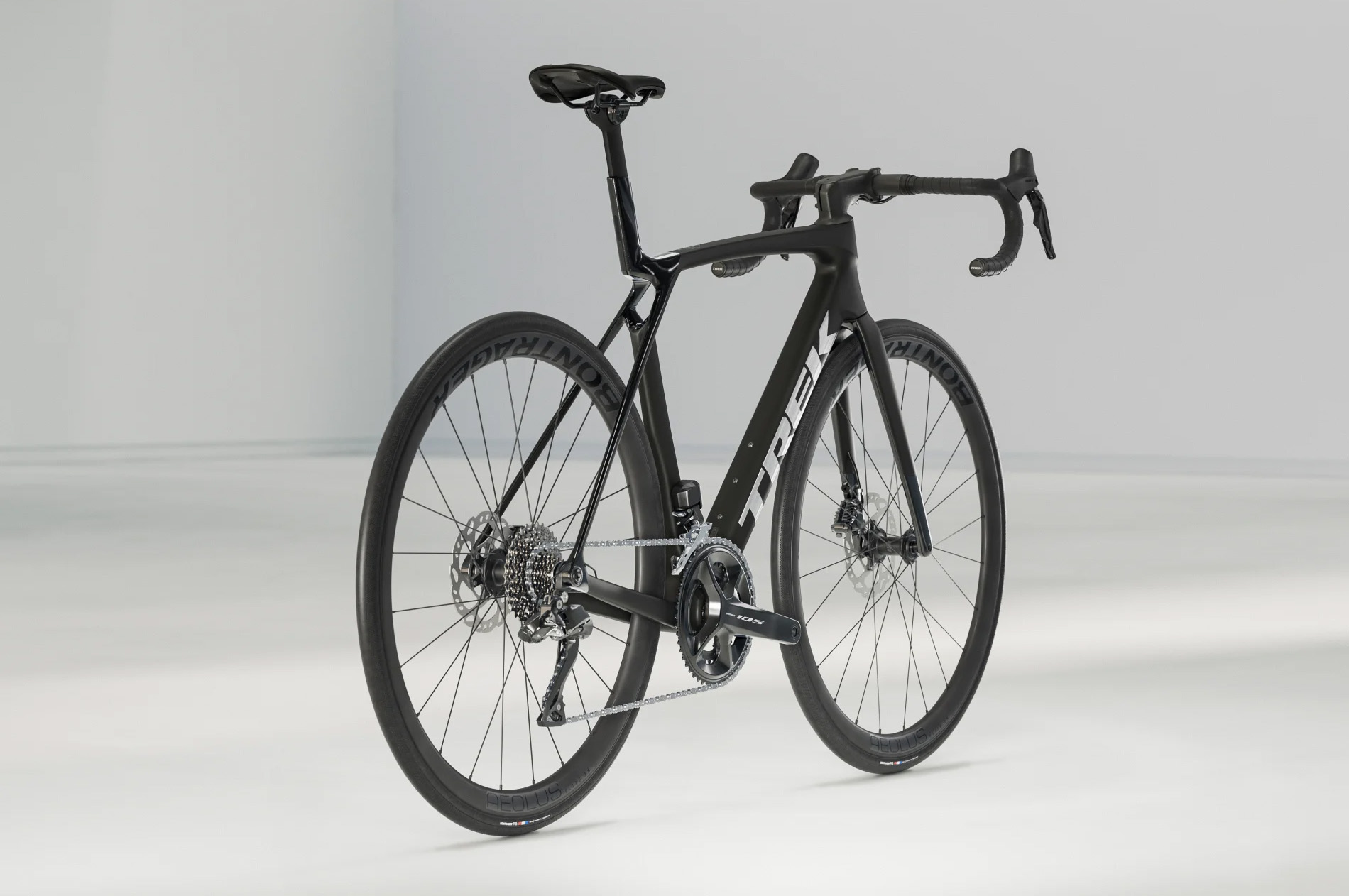

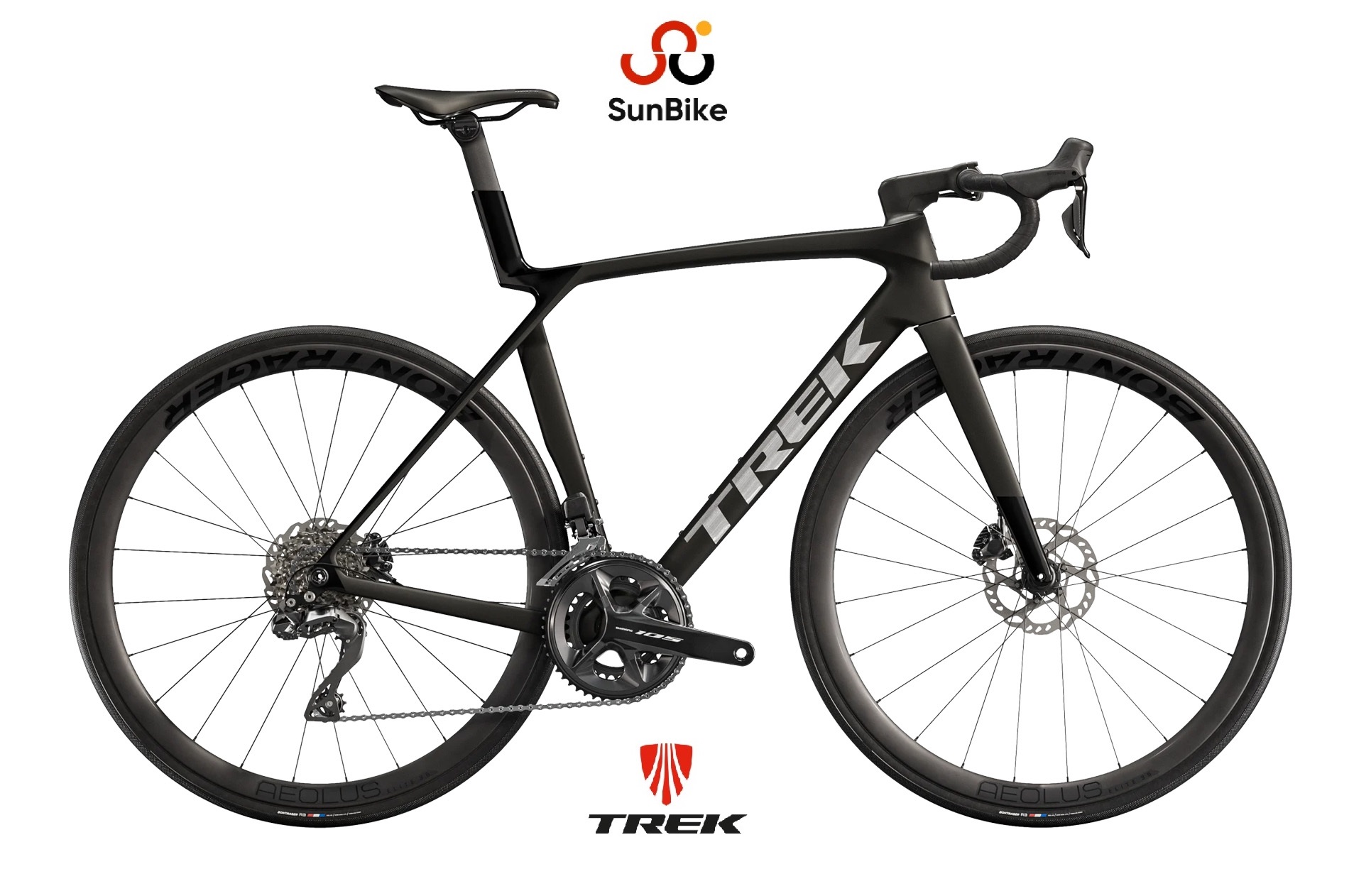

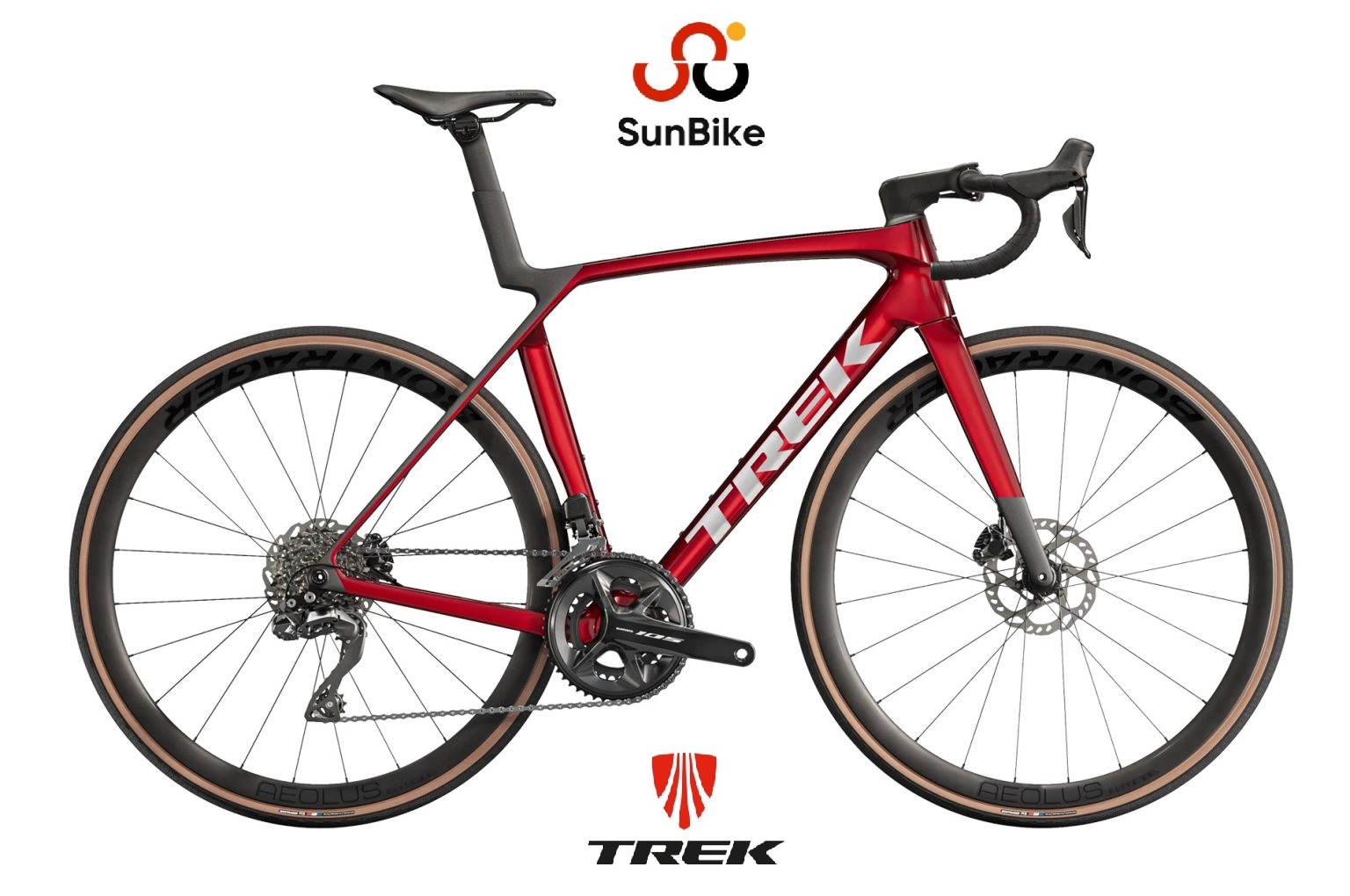

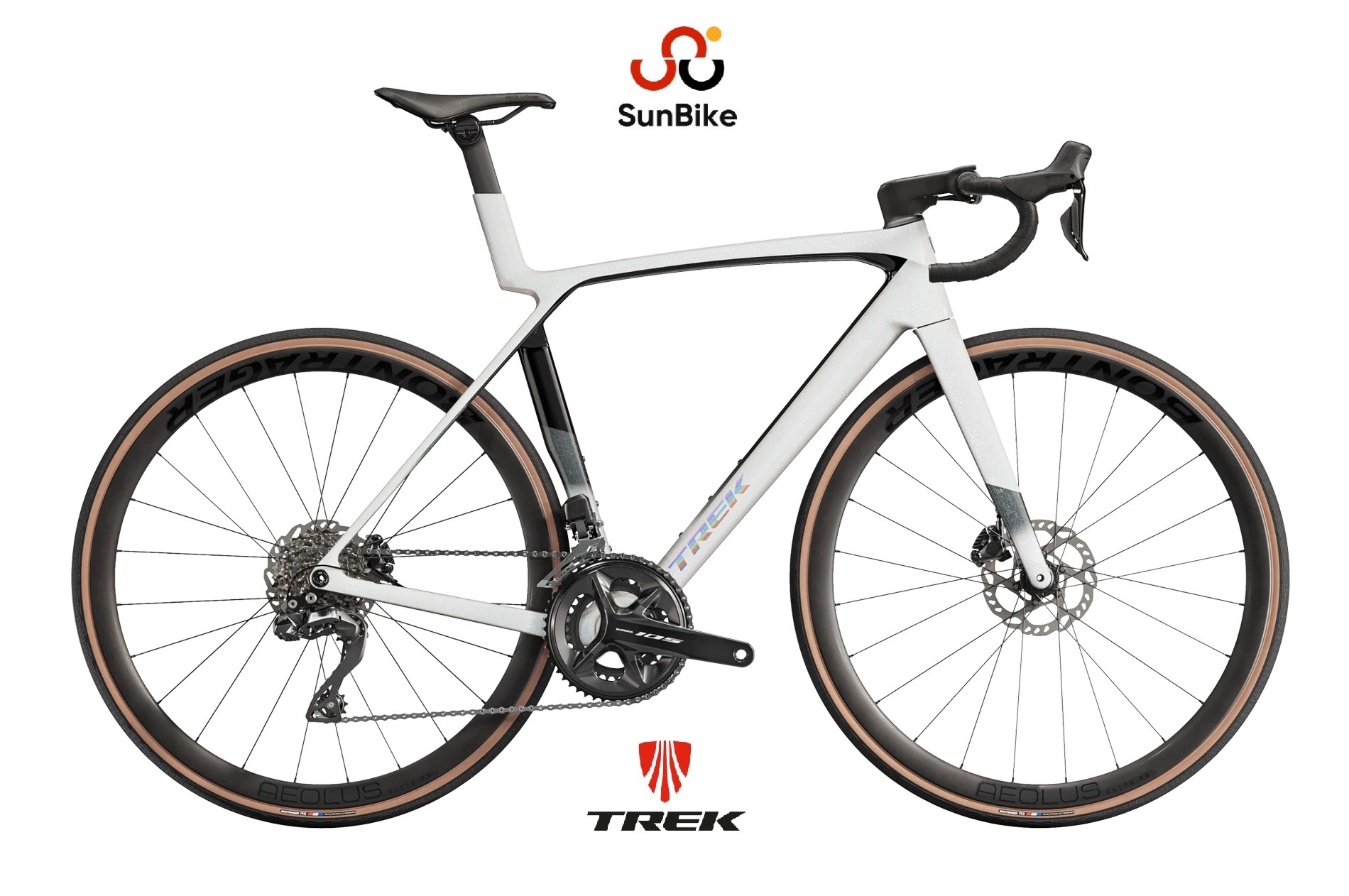

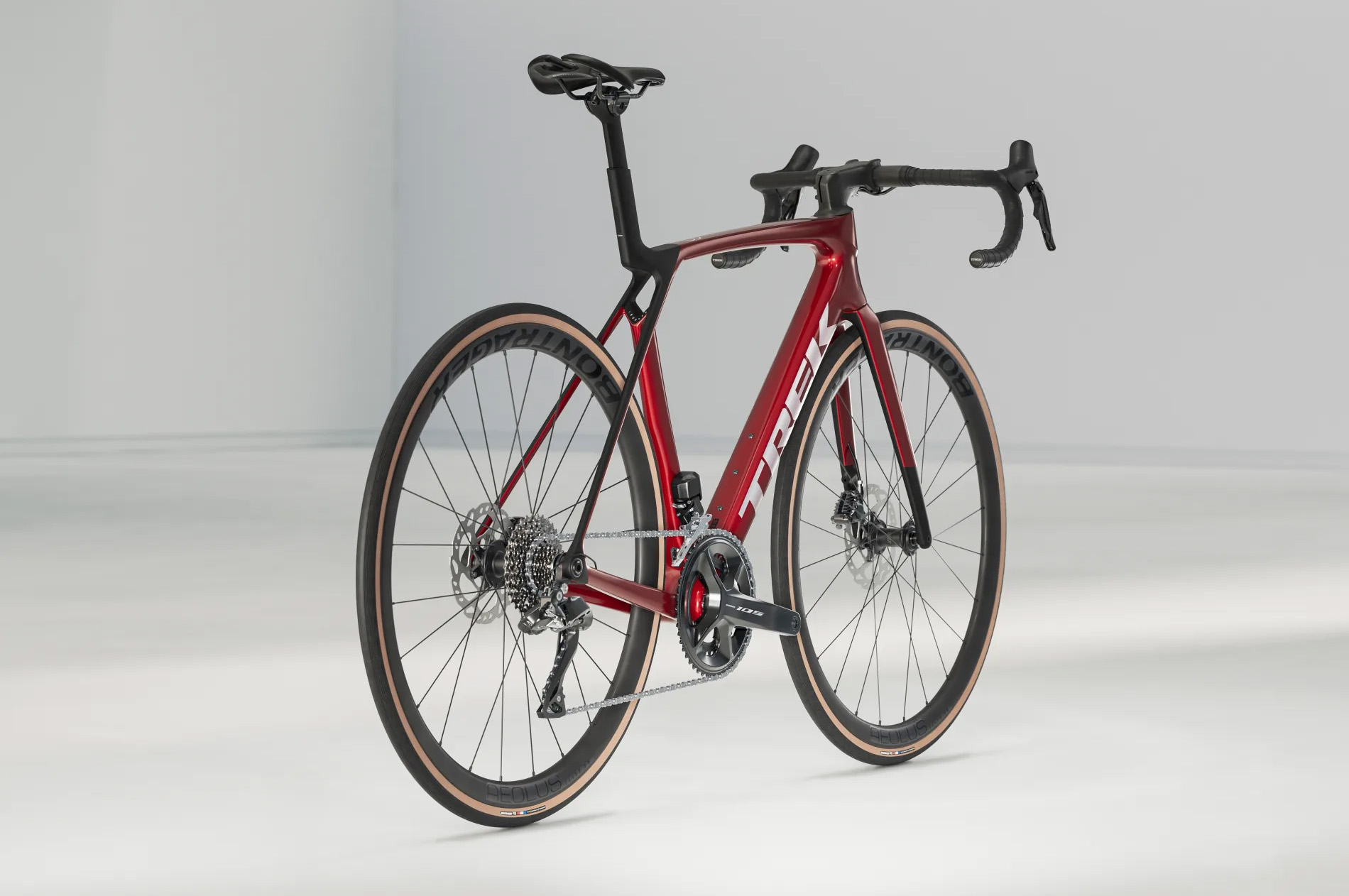

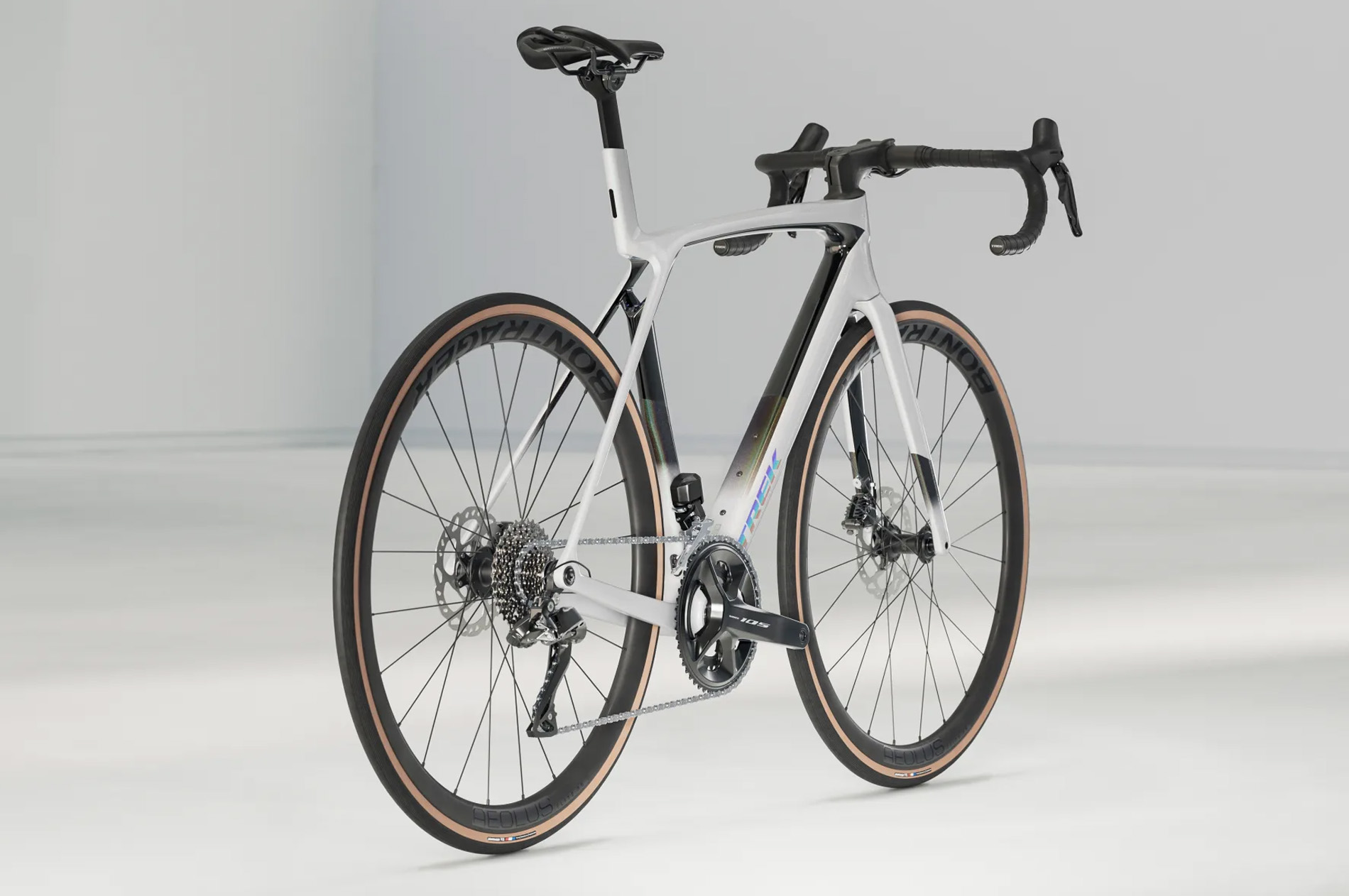

Xe đạp đua đường trường TREK Madone SL 6 [Gen 8]

KHUNG

Màu sắc/Colors:

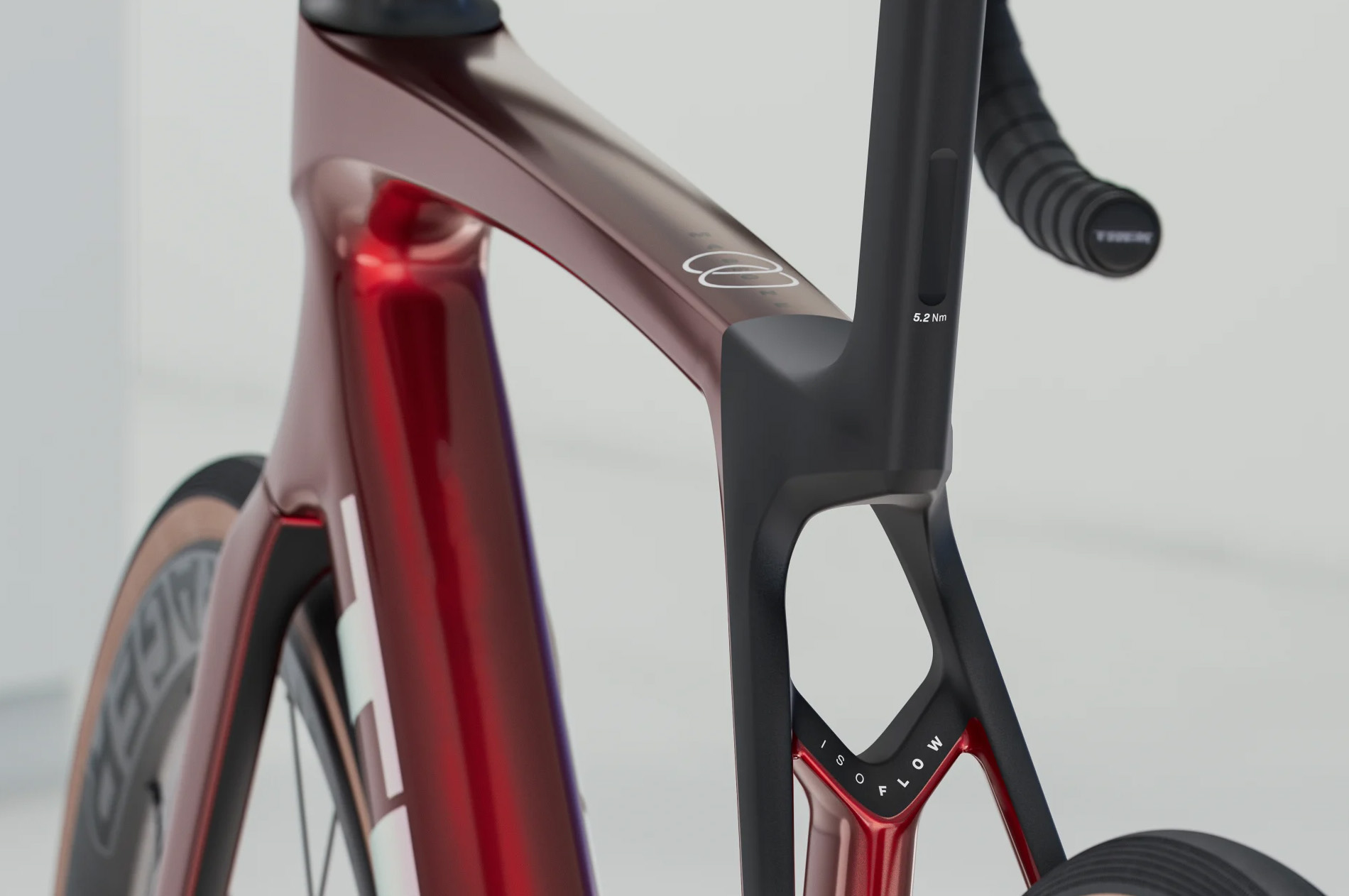

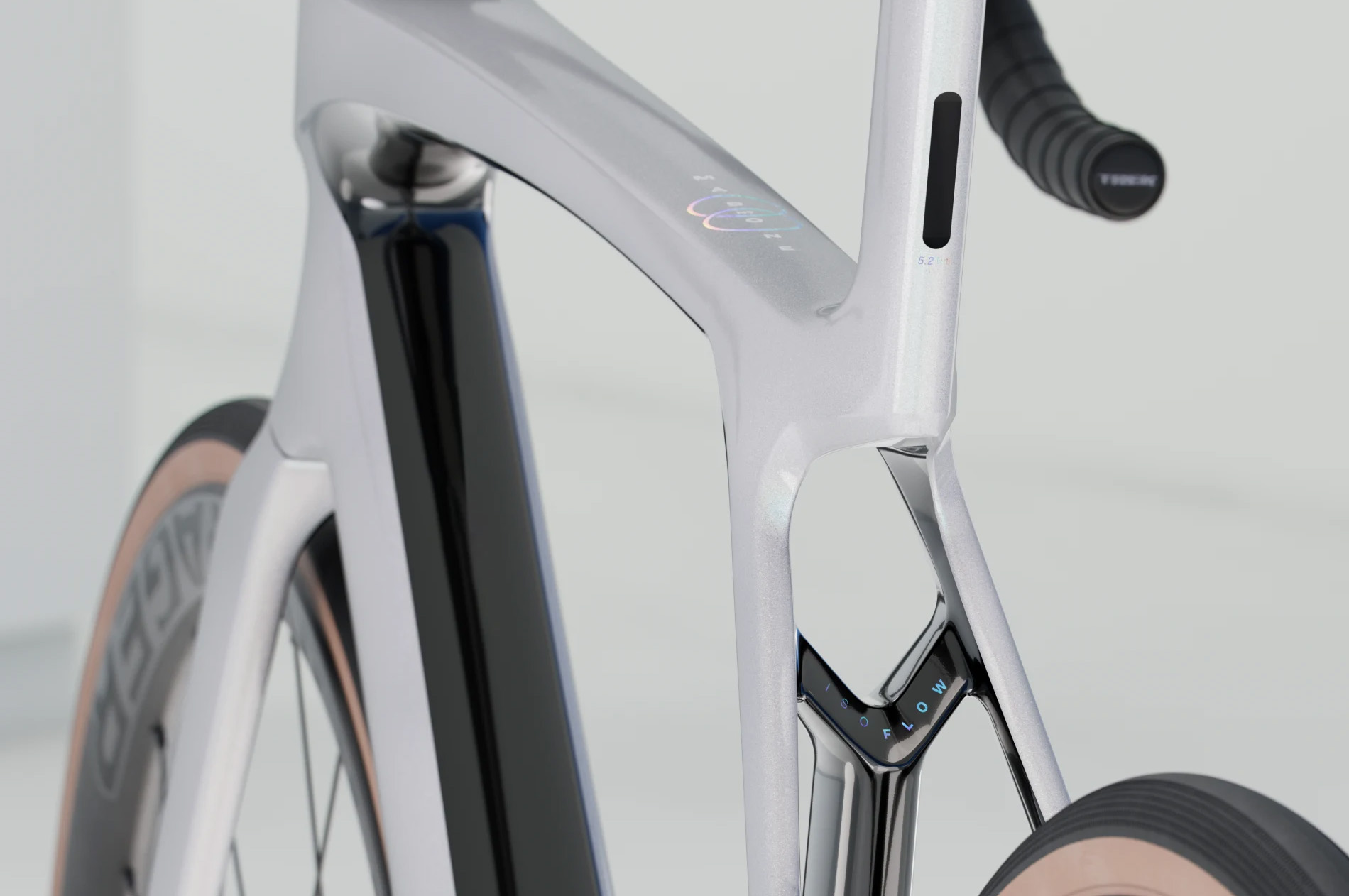

Chất liệu khung/Frame:

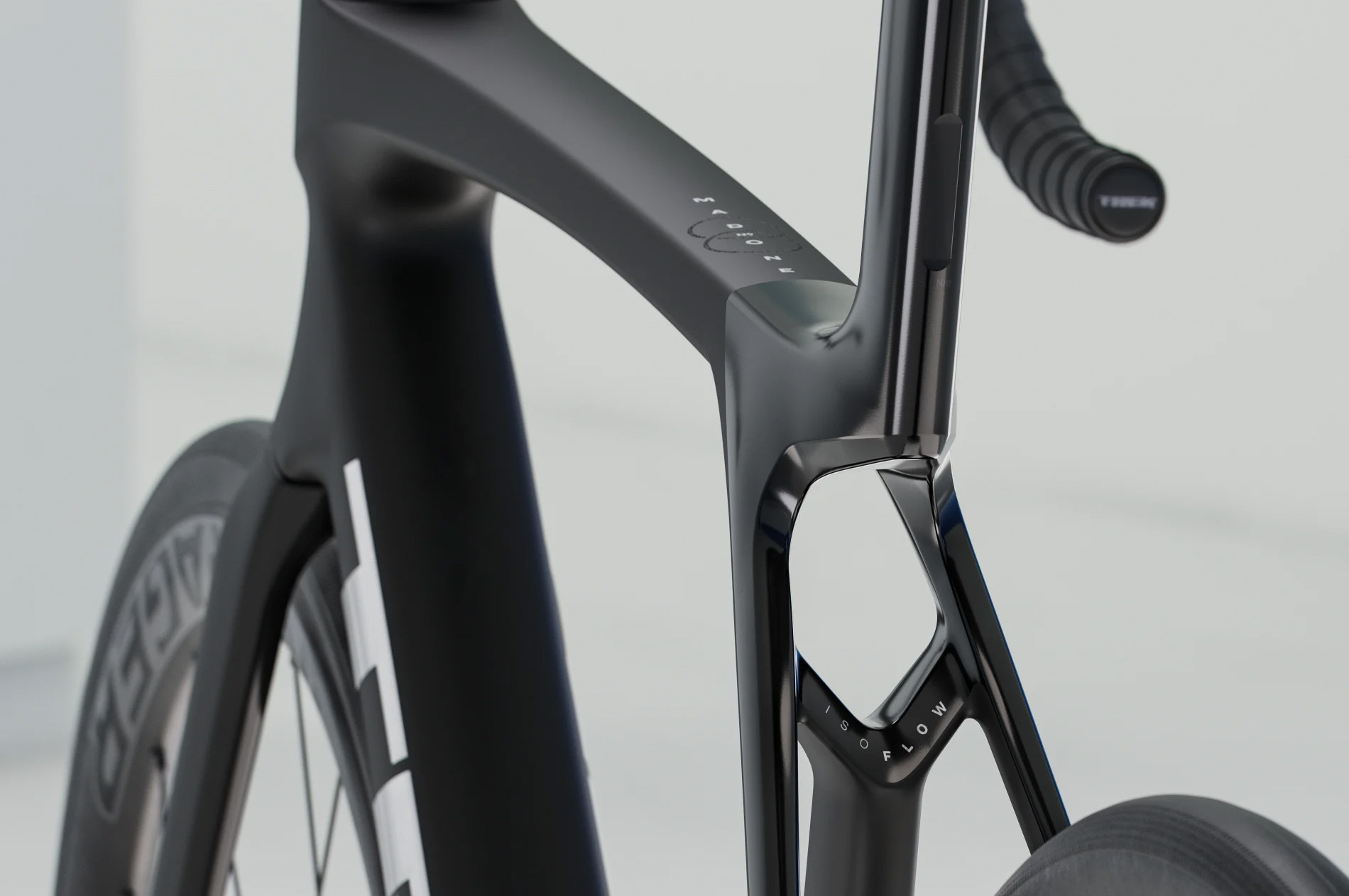

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle

Phuộc/Fork:

Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Giảm xóc/Shock:

-

CÁC BỘ PHẬN

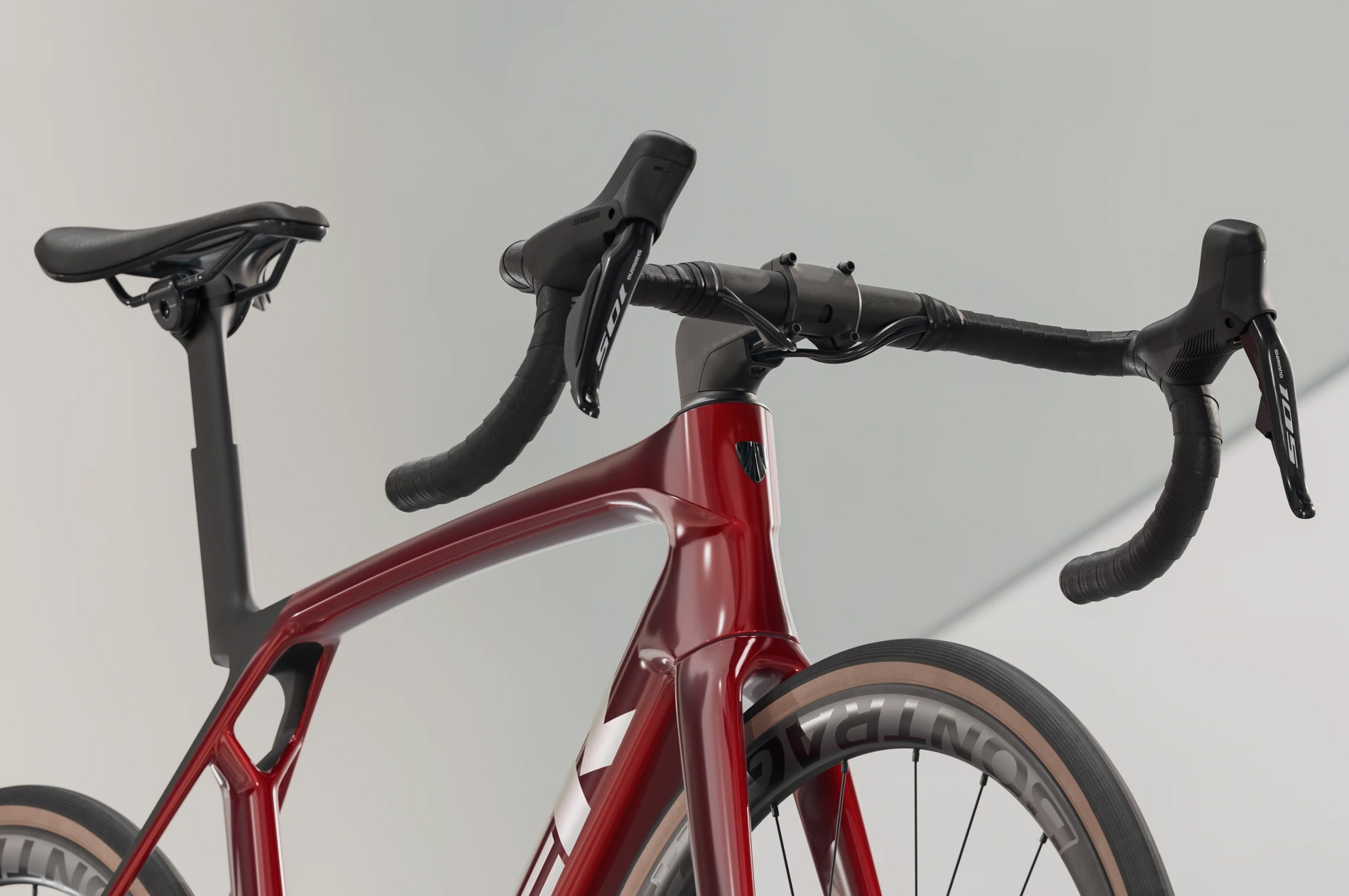

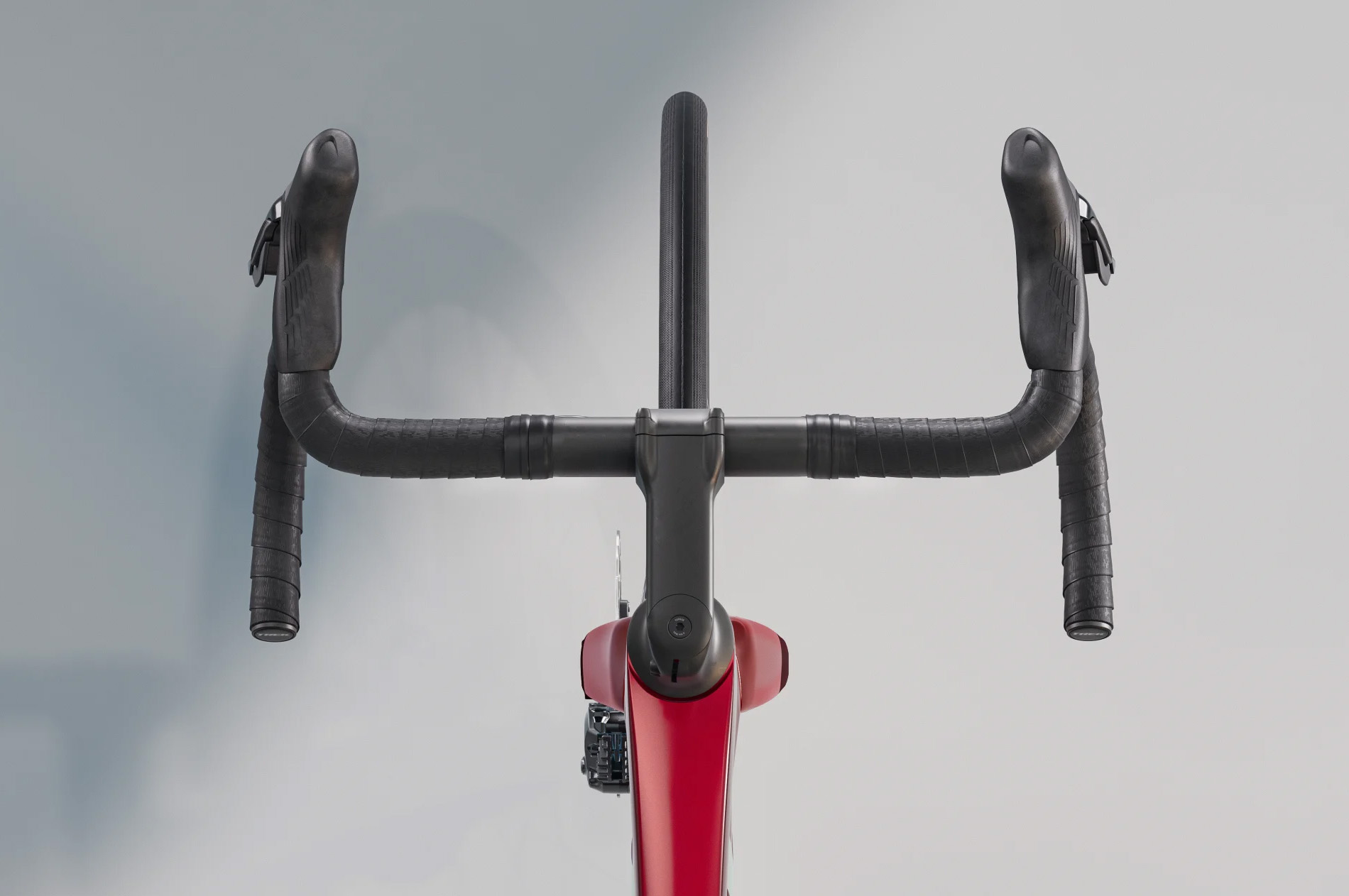

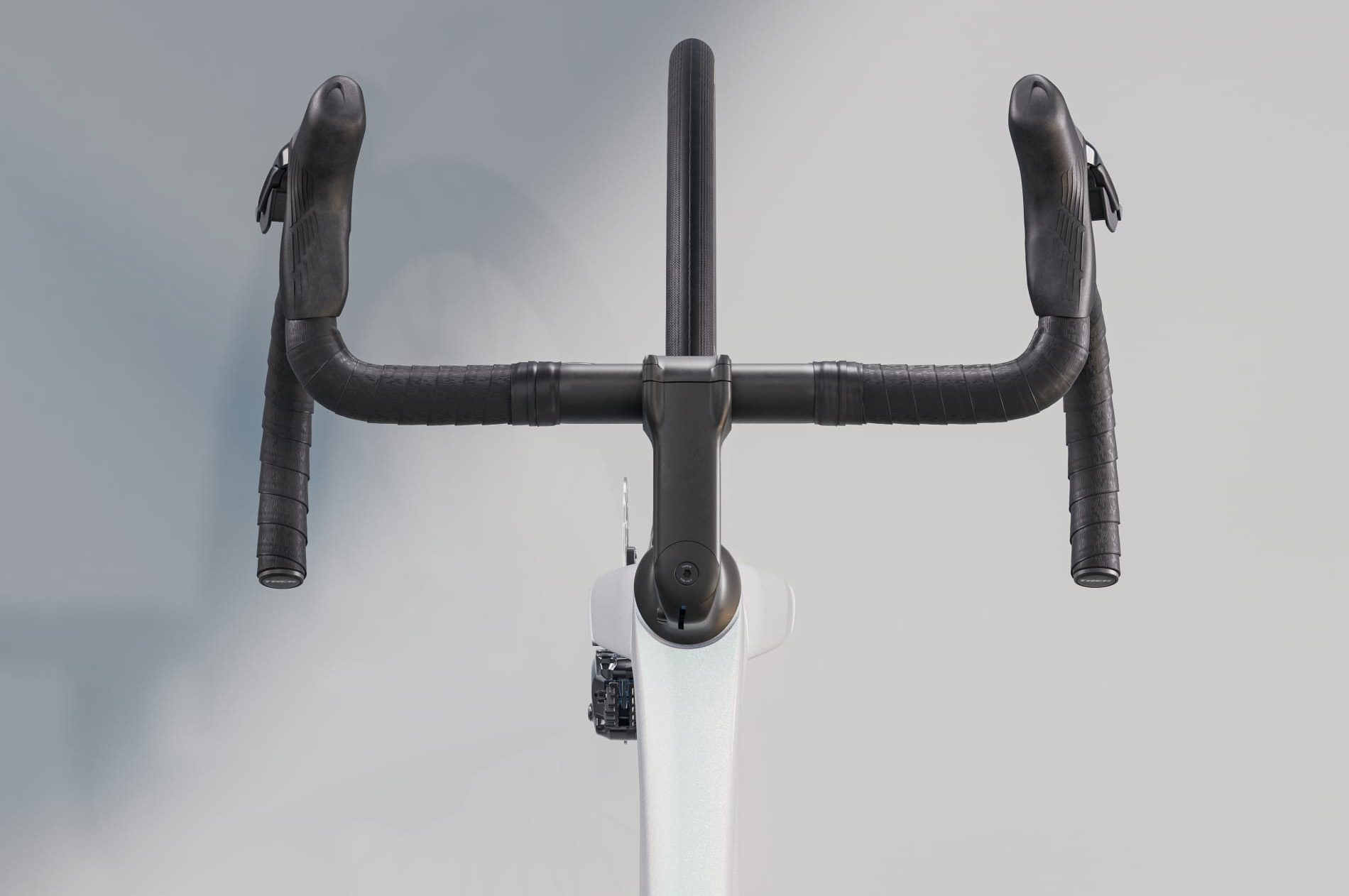

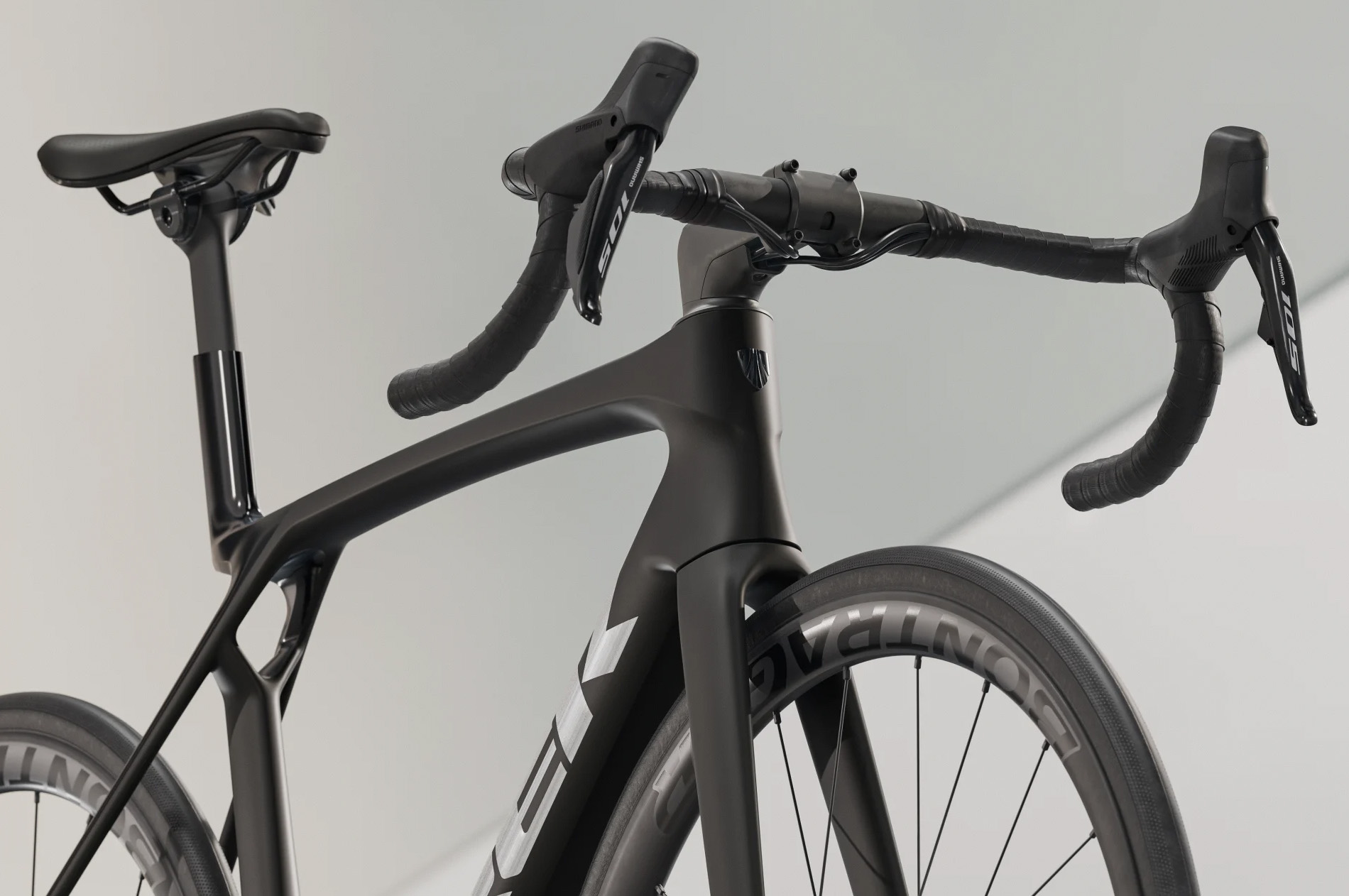

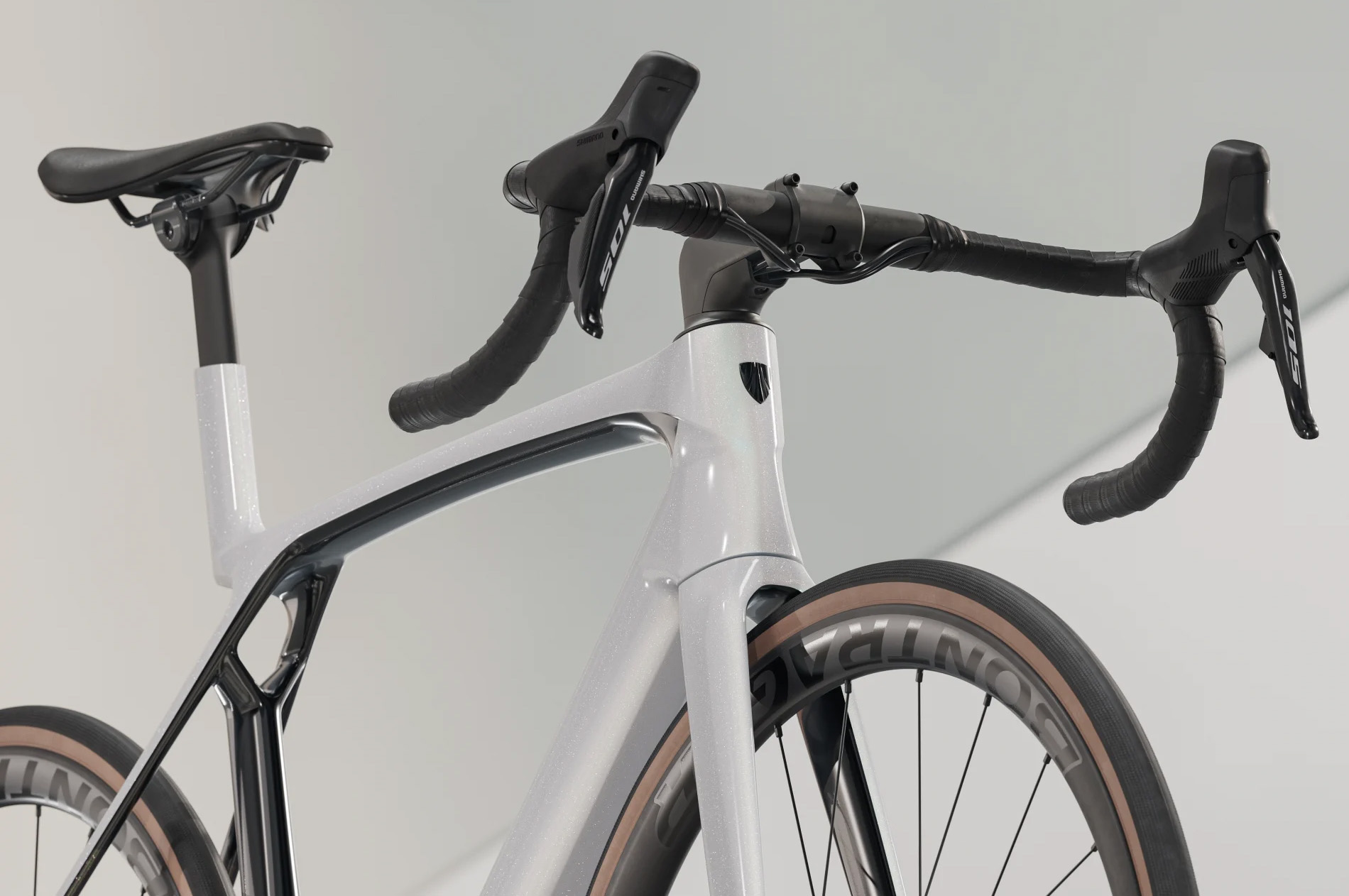

Ghi đông/Handlebar:

Size XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width

Size S, M  : Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width

Size ML, L: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width

Size L:Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width

Pô tăng/Stem:

Size: XS  Trek RCS Pro, -7-degree, 80 mm length

Size: S, M  Trek RCS Pro, -7-degree, 90 mm length

Size: ML, L  Trek RCS Pro, -7-degree, 100 mm length

Size: XL  Trek RCS Pro, -7-degree, 110 mm length

Cọc yên/Seatpost:

Size XS, S, M : Madone aero carbon seat post, 0 mm offset, short length

Size XS, S, M :Madone aero carbon seat post, 0 mm offset, long length

Yên/Saddle:

Size XS, S : Bontrager Aeolus Comp, steel rails, 155 mm width

Size M, ML, L, XL: Verse Short, steel rails, 145 mm width

Bàn đạp/Pedals:

N/A

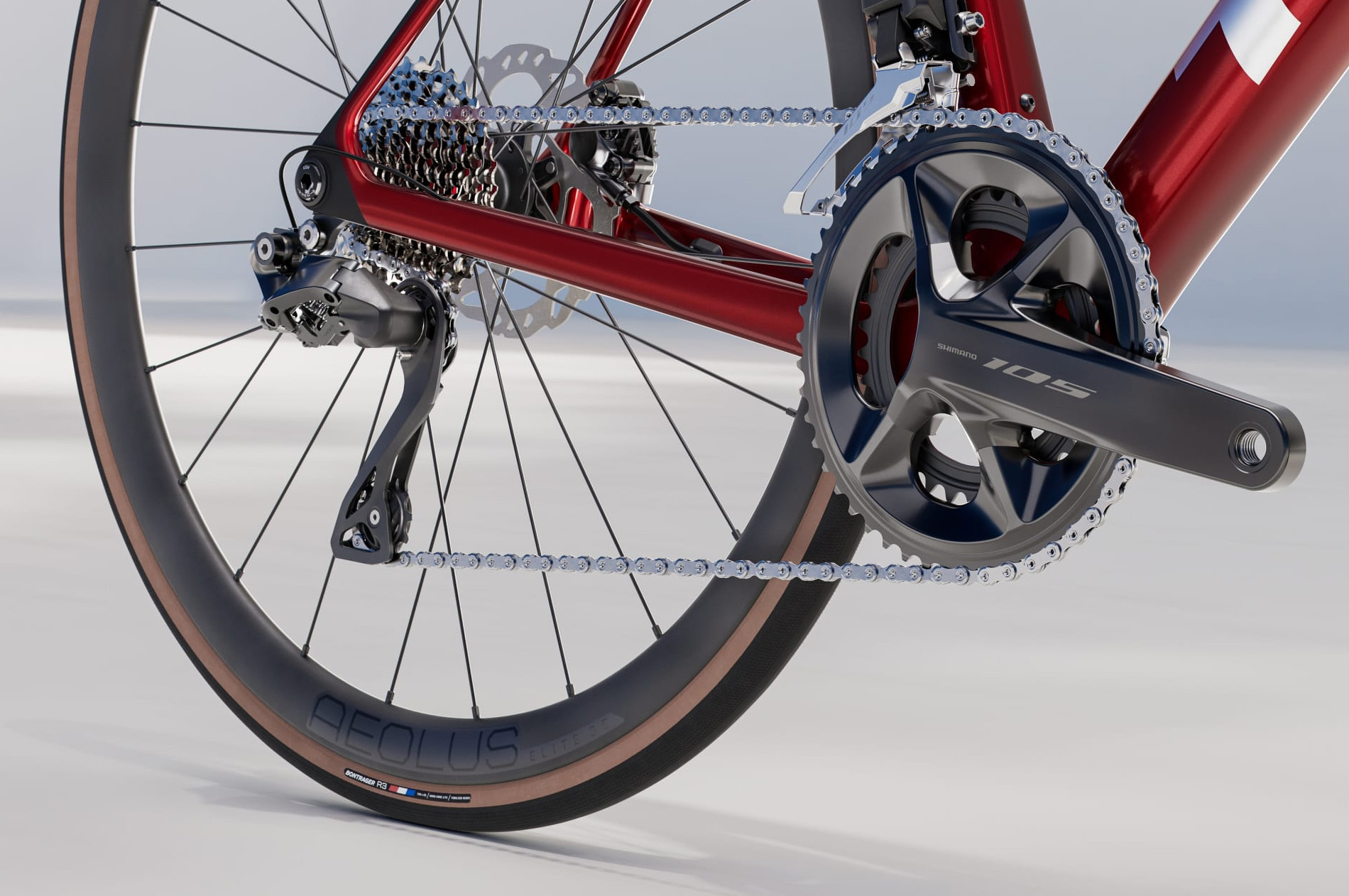

BỘ TRUYỀN ĐỘNG

Tay đề/Shifters:

Shimano 105 R7170 Di2, 2x12

Bộ chuyển đề trước/ Front Derailleur:

Shimano 105 R7150 Di2, braze-on, down swing

Bộ chuyển đề sau/ Rear Derailleur:

Shimano 105 R7150 Di2, 36T max cog

Phanh/Brakes:

Shimano RT70, CentreLock, 160 mm

Líp/Cassette:

Shimano 105 7101, 11-34, 12-speed

Xích/Chain:

Shimano SLX M7100, 12-speed

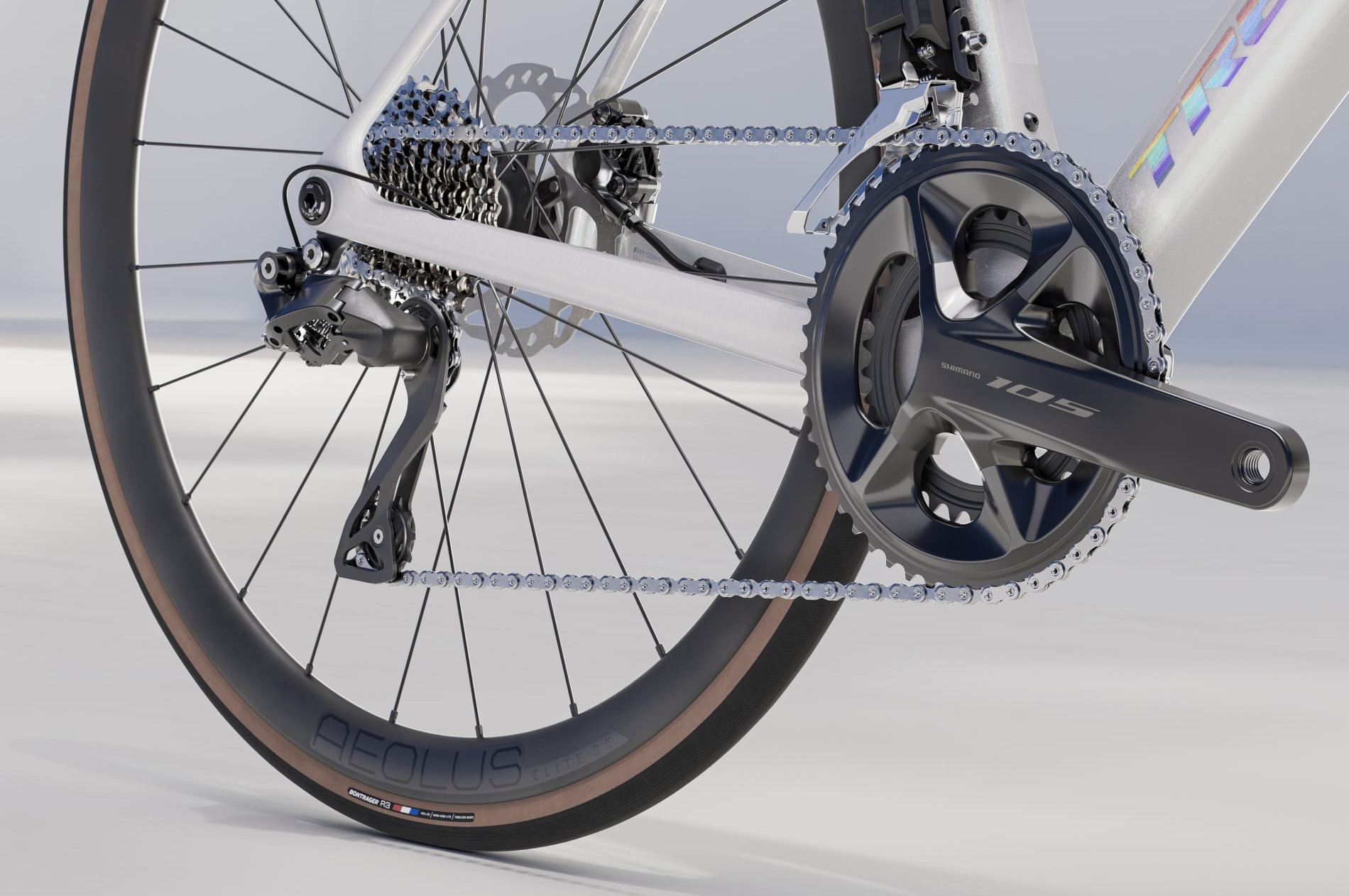

Đùi đĩa/Crankset:

Size: S, XS  Shimano 105 R7100, 50/34, 165 mm length

Size M :  Shimano 105 R7100, 50/34, 170 mm length

Size  ML, L: Shimano 105 R7100, 50/34, 172.5 mm length

Size XL: Shimano 105 R7100, 50/34, 175 mm length

HỆ THỐNG BÁNH XE

Vành xe/Rims:

Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100×12 mm thru axle

Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142×12 mm thru axle

Moay ơ/Hubs:

Nan hoa/Spokes:

Lốp xe/Tires:

Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm

Cỡ khung

Chiều cao người lái

XS

143 – 158 cm

S

158 – 162 cm

M

162 – 173 cm

ML

173 – 179 cm

L

179 – 188 cm

XL

188 – 213 cm
