TREK PROCALIBER 9.6 [2022-2023]

KHUNG

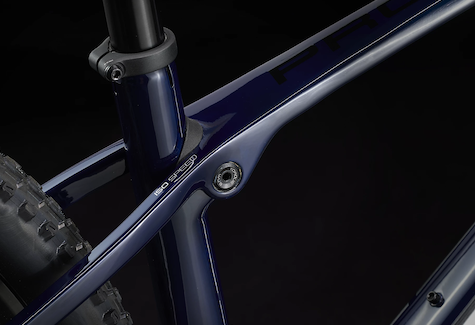

OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148

PHUỘC

RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel

KHOÁ PHUỘC

RockShox OneLoc Sprint

BÁNH TRƯỚC

Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

BÁNH SAU

Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148

KHOÁ BÁNH SAU

Bontrager Switch thru-axle, removable lever

VỎ XE

Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20″

PHỤ KIỆN VỎ

Bontrager TLR valve, 50 mm

DÂY TIM

Bontrager TLR

CỠ VỎ LỚN NHẤT

29×2.40″

TAY ĐỀ

Shimano SLX M7100, 12-speed

ĐỀ SAU

Shimano XT M8100, long cage, 51T max cog

GIÒ ĐẠP

Shimano MT611, 30T steel ring, alloy spider, Boost, 170 mm length (175mm on M , ML , L , XL , XXL )

CHÉN TRỤC GIỮA

Shimano MT500, 92 mm, PressFit

Ổ LÍP

Shimano SLX M7100, 10-51, 12-speed

SÊN XE

Shimano Deore M6100, 12-speed

CỠ ĐĨA LỚN NHẤT

36T

BÀN ĐẠP

Không đi kèm

YÊN XE

Bontrager Arvada, hollow chromoly rails, 138 mm width

CỐT YÊN

Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length (Size S: 330 mm)

TAY LÁI

Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width (750 mm on L, XL, XXL)

BAO TAY NẮM

Herrmans Clik

CỔ LÁI

Bontrager Rhythm Comp, Knock Block, 31.8 mm, 0-degree, various length depended on size

BỘ CHÉN CỔ

Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom

HỆ THỐNG THẮNG

Front: Shimano hydraulic disc, MT4100 lever, MT410 calliper / Rear: Shimano hydraulic disc, MT401 lever, MT400 caliper

ĐĨA THẮNG

Shimano RT56, 180 mm (F) /160mm (R)

TRỌNG LƯỢNG

M – 25.07 lbs / 11.37 kg (with TLR sealant, no tubes)

TẢI TRỌNG

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
